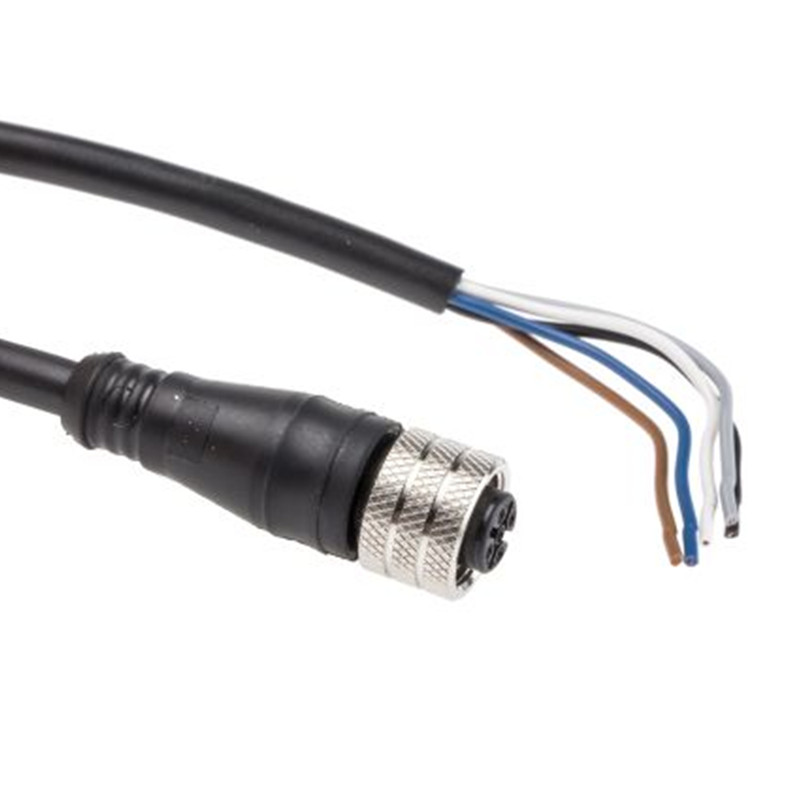

Cable conector para sensor M12 Recto 4Pines 2M
Cable conector para sensor M12 Recto 4Pines 2M
0

12FC4A2Z Cable conector para sensor M12 Recto 4Pines 2M - 3cables

$ 5,00
Impuestos excluidos
12FC4A2Z
RSMATION

HTP FEMALE 4 PIN 2 METER M12 CORDSET

  • AmericanExpress
  • ApplePay
  • Visa
  • Skrill
  • Paypal
  • MasterCard
  • GooglePay
  • DiscoverDiscver®
  • Blik
  • Visa
  • Skrill
  • Paypal
  • MasterCard
  • GooglePay
  • DiscoverDiscver®
  • Blik
  • ApplePay1
  • AmericanExpress
  • Visa
  • Skrill
  • PayPal
  • MasterCard
  • GooglePay
  • DiscoverDiscver®
  • Blik
  • ApplePay
  • AmericanExpress
  • western-union-vector-logo
  • Visa
  • Skrill
  • PayPal
  • MasterCard
  • GooglePay
  • blik
  • ApplePay

The 12FC4A2Z M12 molded cable with female straight plug has 4 pins and 2 meters 3 wire of cable. It has a rated voltage of 250V and a rated current of 4A. Protection class IP69K. Operating temperature -25 C to +70 C (-13 F to 158 F). The conductor size is 0.25mm 2 for 24 AWG wire

Specifications

  • Housing & Cable Color- Black

  • Type of Contact- Female Straight

  • Number of Pins- 4

  • Rated Voltage- 250V AC/DC

  • Rated Current- 4 Amps

  • Protection Class- IP 69K

  • Contact Material- Phosphorous Bronze

  • Housing Material- Nylon 6 + 30% Glass Fiber

  • Cable Material- PVC

  • Contact Surface Material- Nickel + 0.45 µm AU gold plated

  • Coupling Nut Material- Zn Al/Ni

  • Conductor Insulation Material- PVC

  • Cable Length- 2 meters (16.4 ft)

  • Wire Gauge- 24 AWG

  • Outer Diameter- 4.4mm (+/- 0.15mm tolerance)
RSMATION
12FC4A2Z
