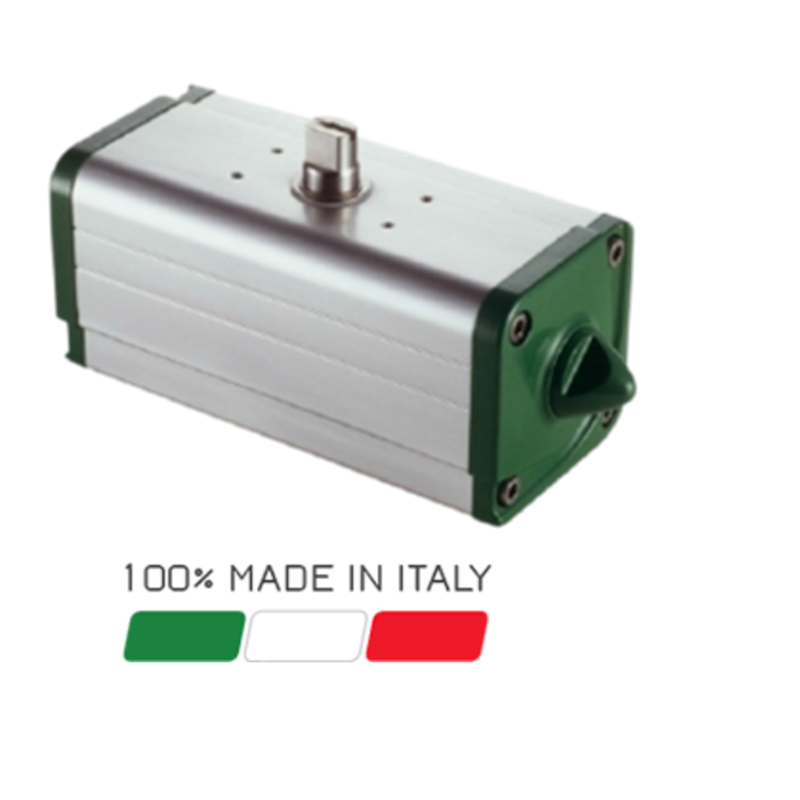

GD106 ACTUATECH Double Acting Actuators

GD106
Actuatech

For ball valve 2 a 3¨

$170.00
INTERNATIONAL SHIPPING: sent by EMS local mail estimated time 10 to 17 days The definitive cost and means of transport will be calculated based on the weight and the actual dimensions of the package, with the largest of the two factors determining the final amount
Quantity
Last items in stock

  • Security policy (edit with Customer reassurance module) Security policy (edit with Customer reassurance module)
  • Delivery policy (edit with Customer reassurance module) Delivery policy (edit with Customer reassurance module)
  • Return policy (edit with Customer reassurance module) Return policy (edit with Customer reassurance module)
Description

Pneumatic actuator, normally closed actuator Double acting, high working temperature Temperature: -20 ° C + 80 ° C, low temperature: -50 ° C + 60 ° C, efficient for mounting with Namur valve, rotation angle -1 ° - + 91 °, the torque is directly proportional to the working pressure, nominal pressure: 5.6bar, maximum pressure 8.4bar. Nominal torque or torque at 5.6bar 15Nm, has a SCOTCH YOKE type mechanism.

Design Style: Dual Scotch Yoke
Valve Connection: ISO 5211 direct mount with female shaft drive
Function: 90° (quarter turn)
Limit Switch Connection: NAMUR
Ports: 1/4" NPT in NAMUR pattern
Service Life: up to 1 million cycles

Model

Torque (in/Nm)
5.6Bar - 0° / 50° / 90°


4Bar - 0° / 50° / 90°

ISO 5211

Stem



GD08

7.0 / 3.5 / 7.0


5.0 / 2.5 / 5.0

F03

11

GD15

15 / 7.5 / 11.3


10.7 / 5.4 / 8.1

F03

11

GD30

30 / 15/ 22.5


21.4 / 10.7 / 16.1

F03, F05



11



GD60

60 / 30 / 45


42.9 / 21.4 / 32.1

F05, F07



14



GD106

106 / 53 / 80


    75.7 /37.9 / 57.1

F05, F07



14



GD180

180 / 90 / 135


    160.7 / 80.4 / 120.3

F07, F10



22



GD240

240 / 120 / 180


    171.4 / 85.7 / 128.6

F07, F10



22



GD360

360 / 180 / 270


    257.1 / 128.6 / 192.9

F07, F10



22



Product Details
GD106
10 Items
