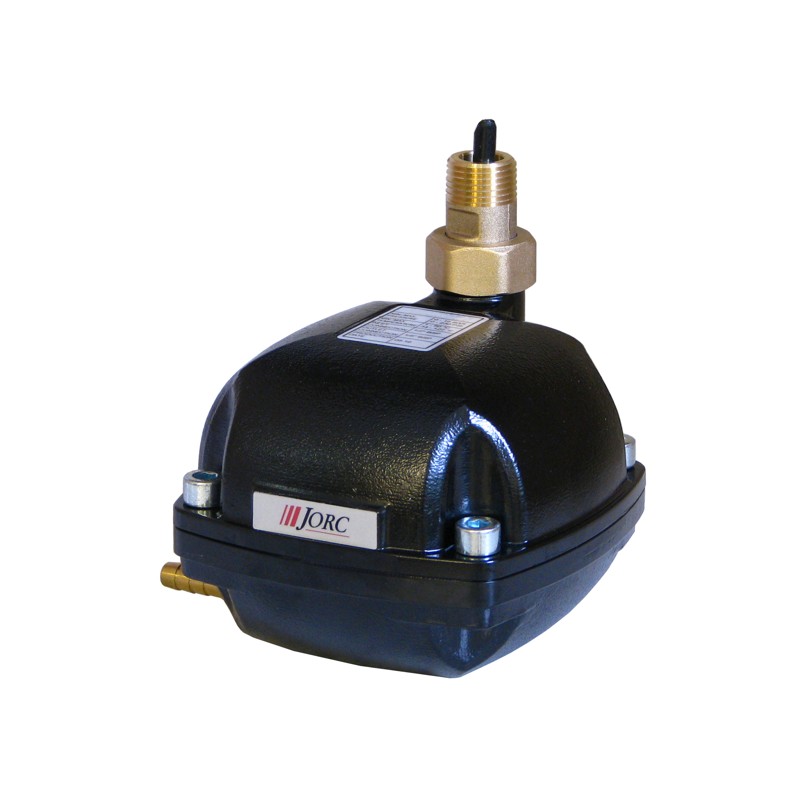

The MINI-MAG is the optimum choice in compact energy saving condensate drains, typically installed in compressed air filters.
Unlike timer or electronic drains, which require electricity to operate, the MINI-MAG operates using a magnet level sensor providing energy saving zero air loss operation without the need for a power source.
Perfectly suited for compressed air filters (due to its compact size), the MINI-MAG uses a magnetically operated 2/2-way direct acting valve assembly, discharging the condensate from your compressed air system without losing any of your valuable compressed air.
The MINI-MAG meets the demand of virtually any application, regardless of the condensate flow. It fits in any compressed air filter, regardless of size, without any set up or adjustment.
JORC recommends to replace all unreliable filter (float) drains with the MINI-MAG.
| MAXIMUM FILTER CAPACITY | Unlimited |
| MAXIMUM DRAINAGE CAPACITY | 52 gallons per hour at 230 psi (16 bar) 200 liters per hour at 230 psi (16 bar) |
| PRESSURE RANGE | 0 - 230 PSI (0 - 16 bar) |
| VALVE TYPE | 2/2 way, direct acting |
| VALVE SEALS | FPM |
| INLET CONNECTIONS | 1/2″ NPT |
| OUTLET CONNECTION | 1/8″ with hose pipe connector |
| INLET HEIGHT | 3.9" |
| MEDIUM TEMPERATURE | 34 - 122 °F |
| AMBIENT TEMPERATURE | 34 - 122 °F |
| SERVICEABLE VALVE | Yes |
| ENVIRONMENTAL PROTECTION | NEMA6 (IP68) |
| HOUSING MATERIAL | Corrosion resistant aluminium, EP coating |
| CALIFORNIA PROPOSITION 65 | See manual |
